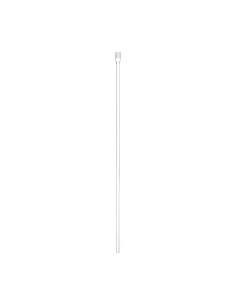

AIR CONDENSER


Laboratory air condensers

In laboratory cooling and distillation processes, not every reaction requires the intensity of cold-water cooling. In many chemical processes, passive cooling is sufficient and can often be preferable due to its simplicity and sustainability. Laboratory air condensers provide this minimalist solution, representing one of the simplest yet most useful types of condenser for specific laboratory setups. Their design relies on exposing a large glass surface to the surrounding air to dissipate heat from the vapour.

Although they do not have the water jacket found in Liebig condensers or Dimroth condensers, their purpose is the same: to return hot vapour to its liquid state and, in reflux applications, back to the reaction flask. The use of these laboratory condensers is generally limited to substances with relatively high boiling points, as ambient air alone provides the cooling gradient. Under these conditions, however, their design offers outstanding simplicity, safety and water efficiency.

How do air condensers cool without water?

The effectiveness of these passive condensers is based on fundamental thermodynamic principles: heat dissipation through convection and radiation.

Tube design and passive heat dissipation

The design of a laboratory air condenser is remarkably simple. It essentially consists of an elongated glass tube extending vertically from the flask.

  • Cooling surface: tube length is one of the key factors. The longer the tube, the greater the glass surface exposed to the surrounding air.
  • Natural convection: when cooler air comes into contact with the hot wall of the tube, it warms and rises, allowing cooler air to take its place. This natural convection is the main mechanism responsible for cooling.
  • Condensate return: vapour rises through the tube and gradually loses heat through the glass walls until it condenses. The liquid then returns by gravity, dripping directly back into the reaction flask and completing the reflux cycle.

This cooling method is particularly suitable for solvents with boiling points in the region of 120–180 °C, where ambient air can provide a sufficiently low temperature for effective and controlled condensation.

Simplicity and sustainability

The main advantage of laboratory air condensers over other types of condenser is that they do not depend on running water or external circulation systems.

  • Reduced water consumption: eliminating the need for cold water can significantly reduce water consumption, providing both environmental and economic benefits, particularly in laboratories with a high workload.
  • Lower risk: hoses, water connections and potential leaks are eliminated. This results in a cleaner and safer setup and reduces the risk of flooding or damage to nearby laboratory equipment.

Specific applications for air condensers

Laboratory air condensers are particularly suitable, and in some cases preferable, for specific chemical applications.

1. Reflux with high-boiling-point solvents

Their main and most efficient application is the reflux of less volatile solvents.

  • Suitable for low-volatility solvents: substances such as xylene (b.p. approximately 140 °C), ethylbenzene and certain heavier aromatic hydrocarbons can be effectively condensed using ambient air without the need for water cooling. This gentle condensation helps maintain thermal stability within the system.
  • High-temperature synthesis: in reactions requiring high temperatures, a laboratory air condenser provides gradual cooling without the intensive heat exchange associated with water-cooled systems. It can be used alongside suitable borosilicate glass reaction flasks in high-temperature laboratory setups.

2. Dry or simple distillation

In distillation setups designed to operate without cooling water, an air condenser can provide a simple and practical condensation solution.

  • Atmospheric distillation: although air condensers are not suitable for separating highly volatile liquids, they can be used for simple distillation where the components have significantly different boiling points, as well as for the purification of high-boiling oils, glycols and similar compounds.

3. Controlled evaporation

Although air condensers are not drying instruments — desiccators are designed for that purpose — they can be incorporated into certain setups where slow and controlled evaporation is required as part of a concentration process.

  • Process control: passive condensation provides a relatively gradual heat-transfer mechanism, which can be useful in processes where slow changes are desirable.

Practical considerations and modern alternatives

Despite their simple design, laboratory air condensers must be correctly selected and installed to perform effectively.

Key environmental factors

The efficiency of these condensers depends directly on the laboratory environment.

  • Ambient temperature: for an air condenser to operate effectively, the laboratory temperature must be sufficiently lower than the temperature of the solvent vapour. In practice, this makes air condensers most appropriate for low-volatility solvents such as heavier aromatic compounds and high-boiling hydrocarbons.
  • Airflow: avoid installing a laboratory air condenser in areas with very poor air circulation or close to external heat sources, as these conditions can reduce heat dissipation.

Higher-efficiency dry cooling alternatives

Other solutions are available for processes requiring greater cooling capacity while still reducing water consumption.

  • Enhanced cooling technology: modern systems such as finned condensers or cold-finger condensers increase the heat-transfer surface using highly conductive materials or specialised geometries, providing greater cooling efficiency than a simple air-cooled tube.
  • Closed-loop cooling systems: while a laboratory air condenser is one of the simplest passive options, coil condensers, including Dimroth and Graham designs, can be operated with closed-loop cooling fluids rather than continuously running tap water, offering greater cooling capacity while helping to reduce water consumption.

Laboratory setup and glassware

Correct assembly is essential for the safe handling and condensation of vapours.

  • Secure connection: the laboratory air condenser is connected to the reaction flask using suitable stoppers or ground-glass joints. Connections must be properly fitted so that vapour follows the intended path through the condenser.
  • Accurate liquid handling: precision when adding and measuring reagents can be maintained using Class A pipettes or laboratory dispensers, depending on the application.

Simplify and optimise your processes with Pobel

Laboratory air condensers combine simplicity with efficient use of resources. They are particularly useful for reactions involving high-boiling-point solvents, enabling laboratories to perform reflux and condensation processes without relying on a continuous supply of cooling water.

At Pobel, we understand that laboratory efficiency is not only about maximum cooling power, but also about selecting the simplest and most appropriate solution for each application. We offer a complete range of laboratory condensers, from basic air condensers to more advanced cooling systems, helping laboratories select the right equipment according to the solvent, boiling point and process requirements.

If you need to equip your laboratory with a water-efficient condensation system or would like advice on selecting the most appropriate condenser for your process, our team can help.

Contact our team for technical advice and find the right solution for your laboratory setup.
